ATC PACKAGE HEAT RECOVERY UNITS FOR
COMMERCIAL AND INDUSTRIAL APPLICATIONS

Performance approximately 90% (EN308), compliant with ErP directive 2018.
Air filtration & conditioning, one-piece, smart and Plug & Play units!

ATC Air Trade Centre is a strong team of individuals, honored by extraordinarily rich past and united by great heritage of our ancestors. Today more than ever, human being making effort for precise and perfect solutions. Inspired heavily on producing clean air, we create our units for a healthier world and better indoor climate conditions. It is our honor to present ATC Mergen Heat Recovery Unit – an innovative solution for indoor air treatment, specially designed for the highest air quality.

The name of ATC HRU was taken from the ancient mythology. According to the myths, the name Mergen Khan belonged to the God of Wisdom. Mergen Khan is associated with inner depth, wisdom and portrayed as a strong and powerful God. Mergen symbolizes intelligence and thought and Mergen’s knowledge were precious and priceless. Mergens decisions were always respected by correctness and exceptional accuracy. The accuracy of the decisions could be compared to hitting an archer in a target that would never miss.

Thanks to its innovative technologies and amazed engineering of our team, ATC Mergen Heat Recovery Unit is sustainable and energy saving solution for the highest air quality. Precisely solving the air treatment target, ATC Mergen HRU provides not only the highest efficiency and the least energy consumption, but performs positive global impact and ecological solutions.

Contact Us Download Catalogue

General Properties

  • Supply and return air filtration and conditioning
  • Integral and compact casing
  • Plug&Play Control Panel
  • High efficienct EC Fans and counter-flow hexagonal heat exchangers
  • Horizontal / Vertical Units

Casing

  • 0.8 mm galvanized internal sheet metal
  • 0.8 mm powder coated galvanized external sheet metal
  • D1 Mechanical strength of casing
  • L1 Leakage class L1
  • Screwless panel attachment with gaskets
  • A1 class rockwool insulated double wall panels at 70kg//m3 density

Capacity

  • Flow rates from 500 m3/hr to 6000 m3/h.
  • Filters
  • Fresh Air, F7 Panel Filter ePM₁ %50
  • Return Air, M5 Panel Filter ePM₁₀ %80
  • Fan and Motor
  • High efficient EC Fan
  • Low noise level for acoustical comfort
  • Integrated thermal protection and speed regulation

Air Conditioning Options

  • Pre-Heater
  • Water/ Electrical Heating Coil
  • Water Cooling Coil
  • DX Coil
  • Auto Change-Over Coil

Control Panel

  • Built-in, plug&play control panel
  • Control Modes;
  • Mode 1, Standad Control
  • Mode 2, CO2 Control
  • Mode 3, Constant Pressure Control
  • Mode 4, Constant Flow Control
  • Mode 5, Constant Flow CO2 Control
  • Each unit is equipped with LCD Panel.

Heat Exchanger

  • Counter-flow type, hexagonal, high efficient plate heat exchanger
  • Energy efficiency around 90%. (Fresh air -10°C 90%/ Return air 20°C 50%)
Link to: Horizontal Air Handling Units

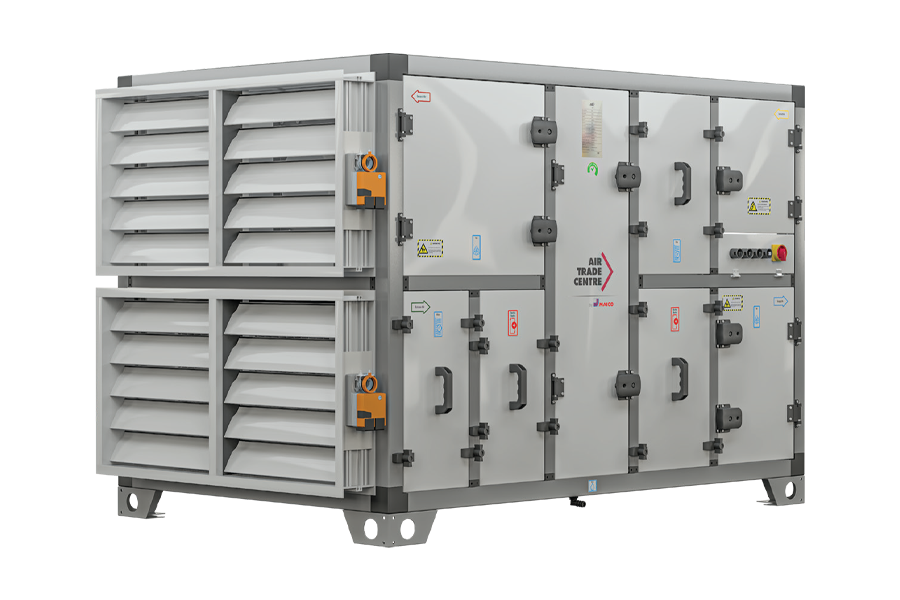

Mergen Heat Recovery Units
Detailed Information

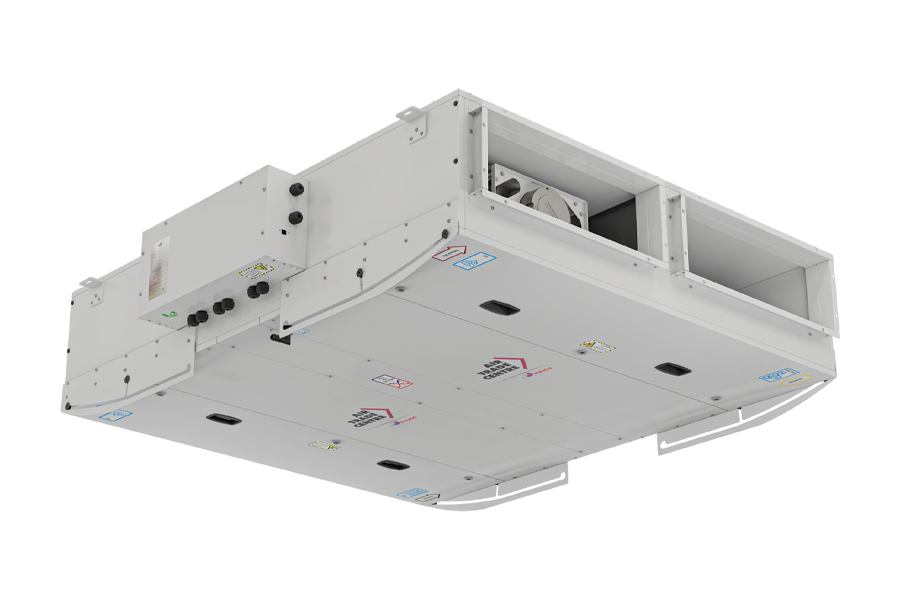

Merkur Heat Recovery Units
Detailed Information
Link to: Horizontal Air Handling Units
  • Standard model
  • Double skin panels with 45 mm high density (70kg/m³) rock wool insulation.
  • Aluminum profiles with thermal breaks (TB2)
  • 5 different sizes
    • 1200 m³/h
    • 1600 m³/h
    • 2300 m³/h
    • 4000 m³/h
    • 5500 m³/h

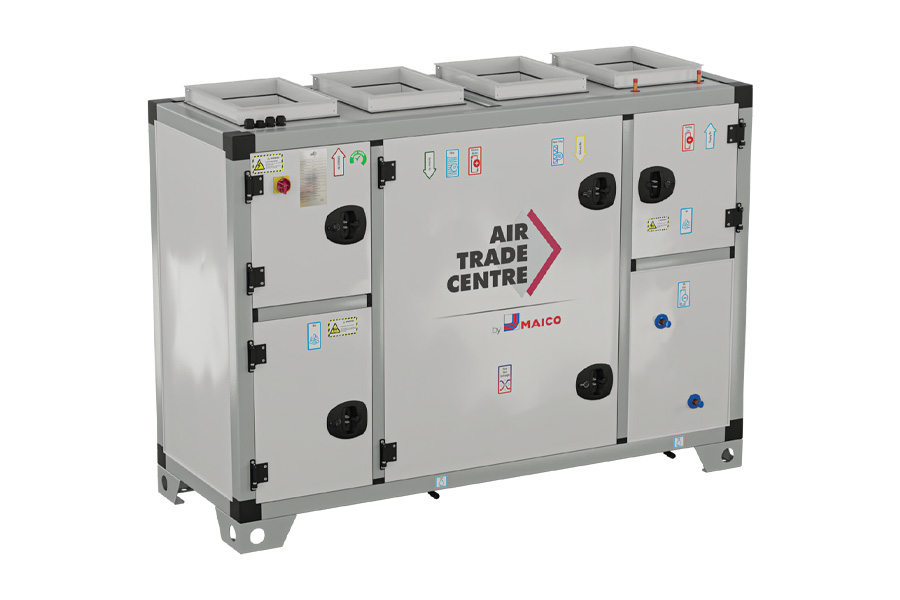

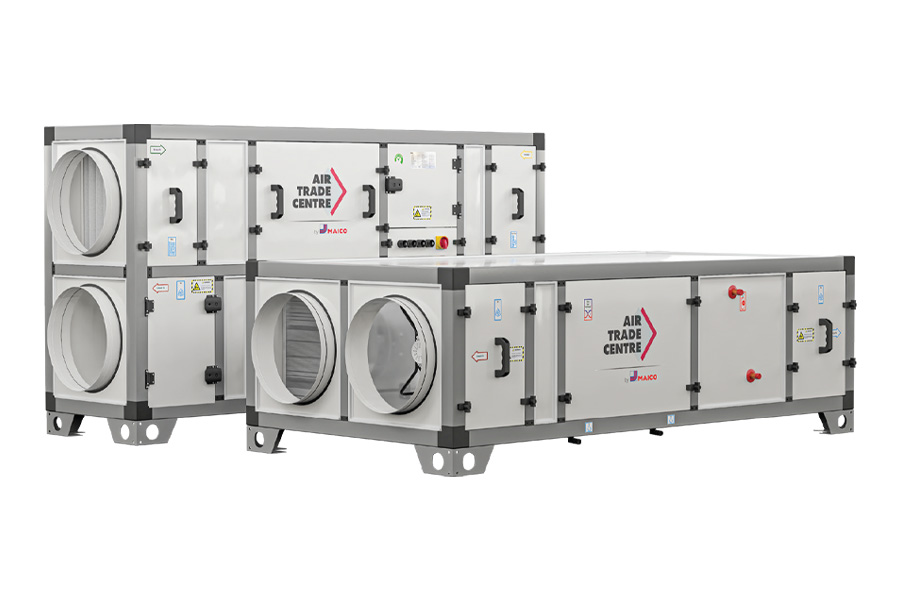

Horizontal or Vertical options for each sizes

  • Slim model for low-height spaces
  • Double skin panels with 25 mm high density (70kg/m³) rock wool insulation.
  • 8 different sizes
    • 600 m³/h
    • 1000 m³/h
    • 1200 m³/h
    • 1600 m³/h
    • 2100 m³/h
    • 3100 m³/h
    • 4000 m³/h
    • 5500 m³/h

Horizontal or Vertical options for each sizes
